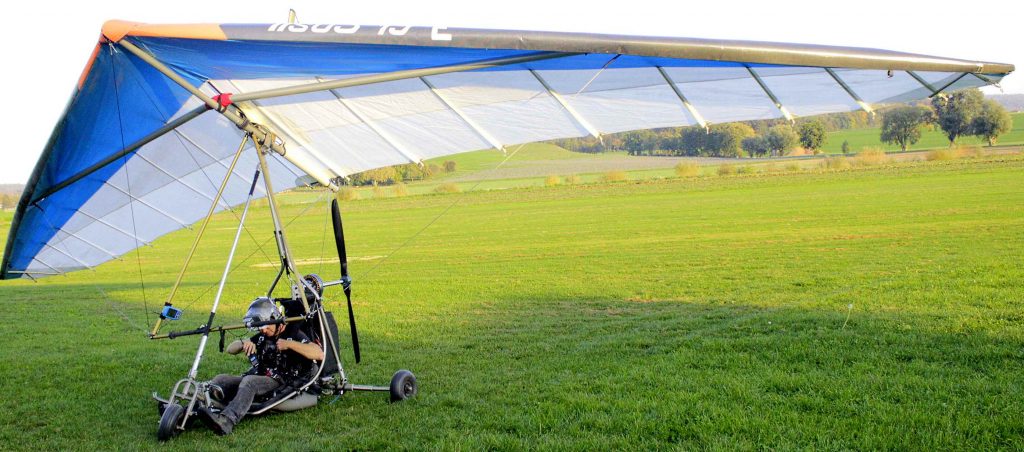

Our latest E-Trike system for hang gliders is exclusively aimed at hang glider pilots who have no need for the existing concept based on the paraglider drive ST-Electro. The standard motorization is 16KW (18KW max.), units of 14KW and 25KW can be installed on request.
Videos:
https://www.youtube.com/watch?v=R1VgJunQ0rY
https://www.youtube.com/watch?v=C3ccpAXC7y0
The trike including the wing can be assembled and disassembled in just a few minutes. The drive unit can be detached from the trike in just a few steps. The whole aircraft can be transported in a normal station wagon. The trike is delivered with one or two 60AH high performance batteries as standard – optionally it is possible to equip the trike with three batteries. As with all our E-systems, the batteries are equipped with the most modern BMS (Battery Management System). Here it does not matter if the trike is flown with one or both batteries at the same time. With maximum battery capacity, flights of over an hour are possible (depending on the weather, the wing used and the skill of the pilot).azity, flights of over an hour are possible (depending on the weather, the wing used and the skill of the pilot).

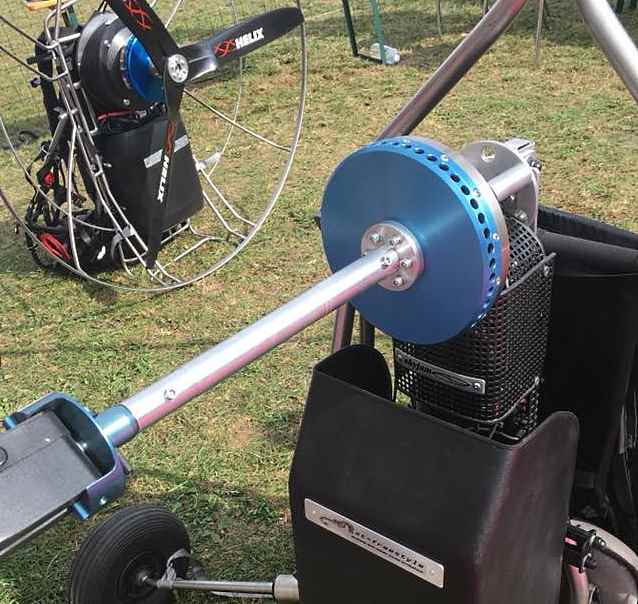

A 140cm propeller is used, which is mounted on an elastically supported and extended shaft. This significantly increases efficiency and significantly reduces noise emissions. Optionally – depending on the motorization – a fixed or folding propeller can be used.
Technical information hang glider trike ST-Freestyle E-Delta
Engine | HPD 12/16/25 |
Power | 18KW max. / 25KW with HPD25 |
Reduction | Direct |
Propeller | 140 cm |
Batteries | 60AH 120AH (2x 60AH) |
Frame | Titanium |
Tower | Inox / Aluminium |
Weight with 120AH battery, without wing | < 75 kg |
Max. take off weight with wing | 220 kg |
